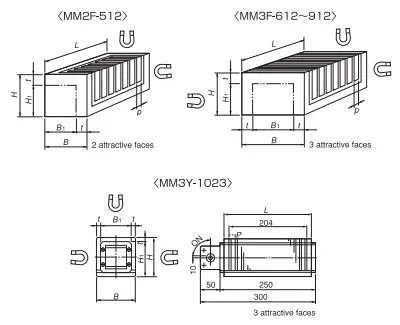

• These blocks are designed to allow deep engraving (machining by customer) such as grooves and steps on the magnetic attractive face to fit workpiece shapes when holding workpieces on the these MM models.
• The attractive face can be removed up to 10 mm deep from the surface of new blocks. • As workpieces can be fitted in grooves, a large machining pressure can be used. Also cemented carbide workpieces, which are difficult to hold, can be held by using these blocks uniquely to enable grinding. • These blocks can be mounted on the magnetic chuck work face. • There are two types; a magnetic force ON-OFF type and a type not equipped with ON-OFF function.
