These are our Toe-Lift Jacks’ standard G-series models, which are used by our customers most.
●They are equipped with a safety valve to prevent overload, enhancing work safety. ●The toe structural part from its head down to toe is cast from a mold without welding or bending process. Besides, it is made of high tension steel, which materializes great strength and durability. ●By making their toes’ corners R shaped, it is reducing the risk of deformation or break by stress concentration. ●Their insertion sockets can rotate so that their operators can handle pumping at the best positions. ●They adopt “Two Rods Locked Type Handle with Grip”, which is very easy to use. ●They can be laid down for use.

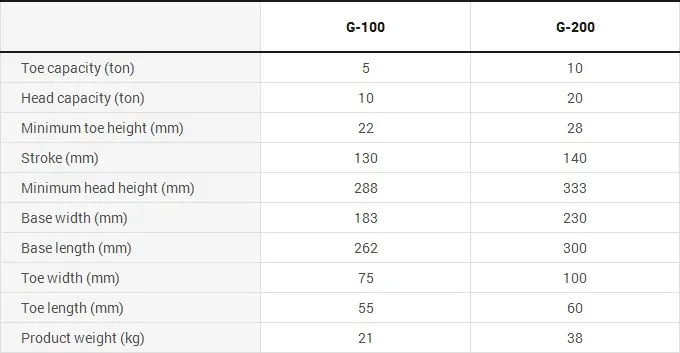

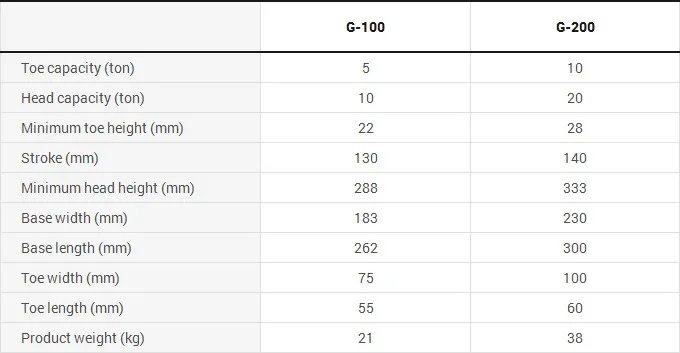

G-60 G-100 G-160 G-200 Toe capacity (ton) 3 5 8 10 Head capacity (ton) 6 10 16 20 Minimum toe height (mm) 19 22 25 28 Stroke (mm) 115 130 136 140 Minimum head height (mm) 233 288 297 333 Base width (mm) 155 183 200 230 Base length (mm) 236 262 285 300 Toe width (mm) 65 75 90 100 Toe length (mm) 50 55 55 60 Product weight (kg) 13 21 28 38
