"K-series" products are remotely controllable and highly maneuverable. They embodied the 3"S" approaches and they are the flag ship of EAGLE's Toe-Lift Jacks.
●These hydraulic jacks are connected with an external pump and a high pressure hose. ●Since their operators can operate them remotely, jack-up tasks in a small space or in a place where the foothold of a machine is unstable can be safely completed. ●They can lower themselves without any load and the speed to get down can be adjusted by controlling their valves. ●They can be operated with a small number of pumping. ●They can be laid on their side, tilted or placed upside down for their operations. ●Two jacks can be synchronized and controlled by one place.

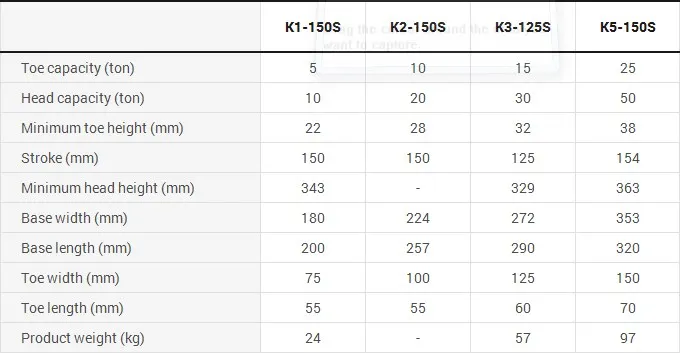

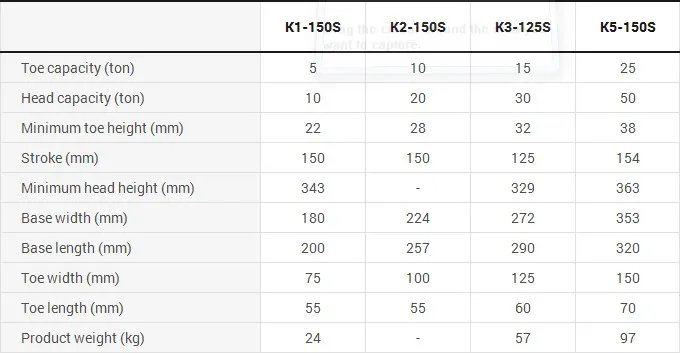

K1-150S K2-150S K3-125S K5-150S Toe capacity (ton) 5 10 15 25 Head capacity (ton) 10 20 30 50 Minimum toe height (mm) 22 28 32 38 Stroke (mm) 150 150 125 154 Minimum head height (mm) 343 - 329 363 Base width (mm) 180 224 272 353 Base length (mm) 200 257 290 320 Toe width (mm) 75 100 125 150 Toe length (mm) 55 55 60 70 Product weight (kg) 24 - 57 97 Cylinder effect area (cm2) 14.52 33.18 44.17 71.63 Oil required (cc) 218 498 553 1,104
Hand Pump Set Compatibility AKB-08S Yes Yes Yes AKB-08S-2V Yes K-18S Yes K-18S-2V Yes Yes
