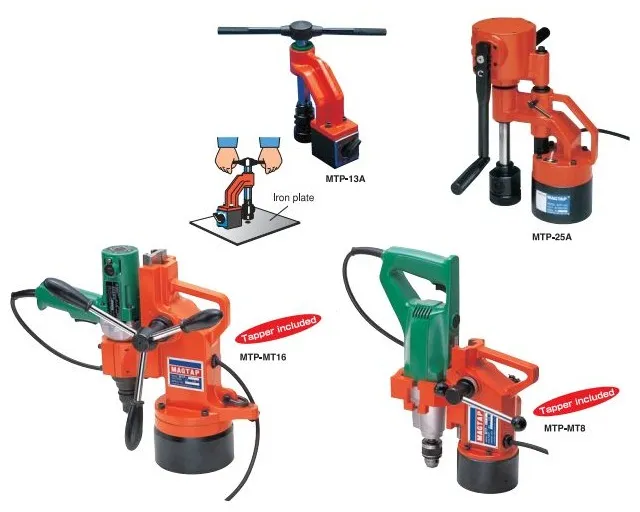

A tool designed to facilitate tapping of prepared holes in iron and steel plates, secured with strong magnetic holding by the Magtap. Available in two models: permanent magnet and electromagnet. Tapping can be done either with a manual hand turning tapper, or an electric tapper.
• Provides a stable mounting position/posture, ensured by strong holding power, for easy tapping.

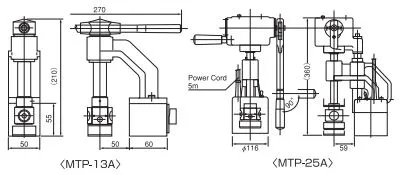

MTP-13 • Small and light weight for easy transportation. • The tap guide holder to facilitate accurate tapping in horizontal and vertical faces. • Wear and damage of taps can be prevented. • The magnet used is a strong permanent magnet.
MTP-25A • Tapping can be done only by operating the latchet lever. • The magnet used is a strong electromagnet.
MTP-MT8 • The revolution can be varied steplessly according to tap sizes. • Small and light weight for easy transportation. • When removed from the mounting fixture, the tapper becomes an electric drill.
MTP-MT16 • Speedy tapping can be achieved by the impact method. • The back-forth and right-left adjusting mechanism is incorporated. • When removed from the mounting fixture, the tapper becomes an electric drill. (The main unit is the same as Kanetec Magbore KCD-1NA, but the lock handle faces an opposite direction.)
