PUR Spiral Hose • Light and flexible • Excellent resistance to oils, solvents, and both aqueous and non-aqueous solutions • Long service life with outstanding aging qualities
CEJN spiral hose is an excellent choice for applications that call for hose to have excellent recoil ability and crimp resistance. It offers high tensile and tear strength and resistance to impacts. The hose is abrasion resistant and is suitable for applications in a wide temperature range.
Technical data
• Max. working pressure: 10 bar (150 PSI)
• Min. burst pressure: 25 bar (360 PSI)
• Hose material: FDA approved, Ester-based polyurethane

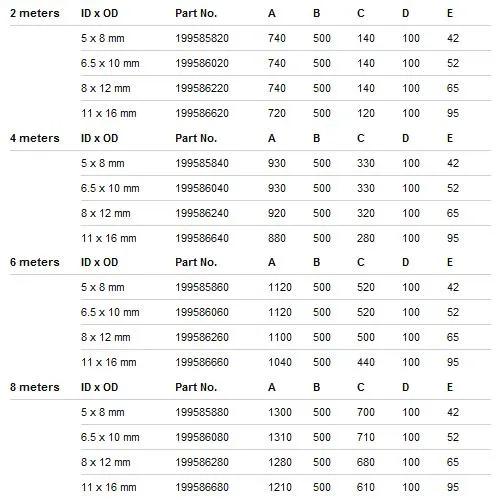

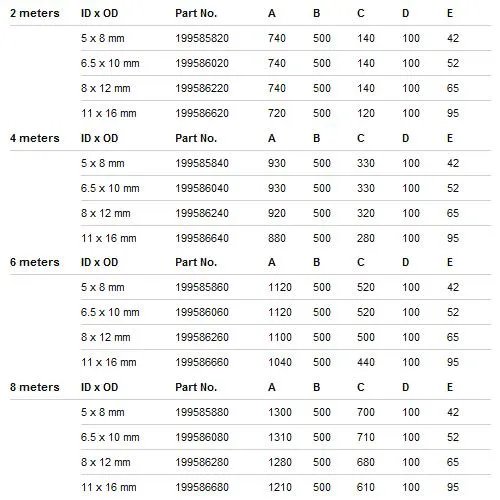

2 meters ID x OD Part No. A B C D E 5 x 8 mm 199585820 740 500 140 100 42 6.5 x 10 mm 199586020 740 500 140 100 52 8 x 12 mm 199586220 740 500 140 100 65 11 x 16 mm 199586620 720 500 120 100 95
4 meters ID x OD Part No. A B C D E 5 x 8 mm 199585840 930 500 330 100 42 6.5 x 10 mm 199586040 930 500 330 100 52 8 x 12 mm 199586240 920 500 320 100 65 11 x 16 mm 199586640 880 500 280 100 95
6 meters ID x OD Part No. A B C D E 5 x 8 mm 199585860 1120 500 520 100 42 6.5 x 10 mm 199586060 1120 500 520 100 52 8 x 12 mm 199586260 1100 500 500 100 65 11 x 16 mm 199586660 1040 500 440 100 95
8 meters ID x OD Part No. A B C D E 5 x 8 mm 199585880 1300 500 700 100 42 6.5 x 10 mm 199586080 1310 500 710 100 52 8 x 12 mm 199586280 1280 500 680 100 65 11 x 16 mm 199586680 1210 500 610 100 95
