• For large size bolt tightening. DECA 450 N DECA 900 N DECA 1800 N DECA 3000 N DECA 4500 N DECA 9000 N DECA 18000 N DECA 450N DECA 900N DECA 1800N DECA 3000N DECA 4500N DECA 9000N DECA 18000N DECA450N DECA900N DECA1800N DECA3000N DECA4500N DECA9000N DECA18000N
• Input torque is always multiplied by ratio of 10:1 with specially designed planetary gears. • Since this device multiplies torque by ratio of 10:1, even large torque can be applied by just one worker. • Tightened bolt can be measured by using DECA model with direct reading type torque wrench. • The small cylinder diameter enables tightening operations in confined place. • Quick turning device on input side speeds up tightening work. • A series ranging from small to large types are supplied for various applications. • Reaction force in every position can easily be received by reaction arm.

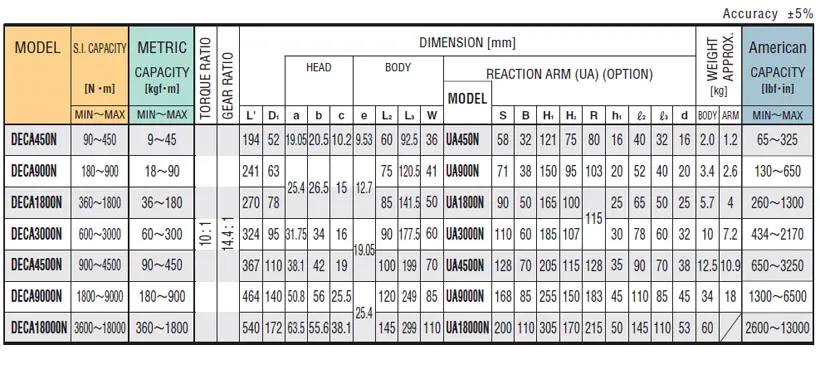

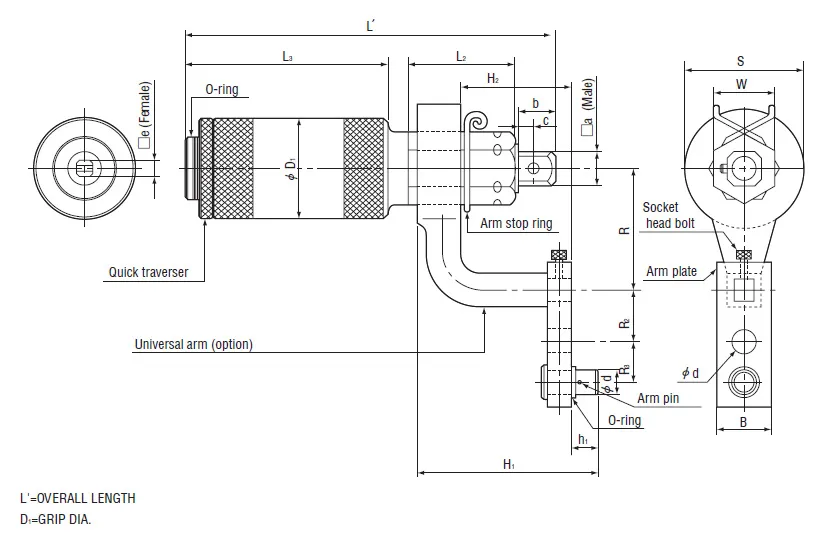

SPECIFICATIONS: 1. Use reaction arm (UA) whenever DECA model is used. 2. DECA450N - 3000N/Metalcase, DECA4500N, 9000N/Metalcase and hand hold handle, DECA18000N/Metalcase and caster are supplied as standard accessory.
